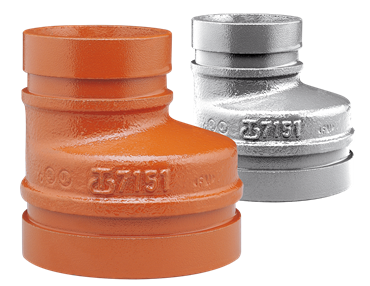

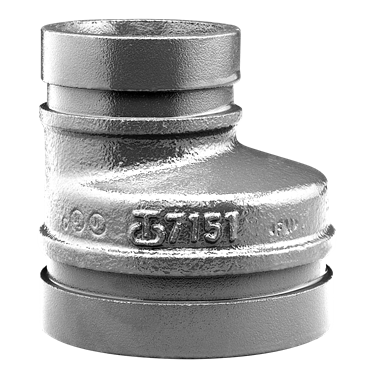

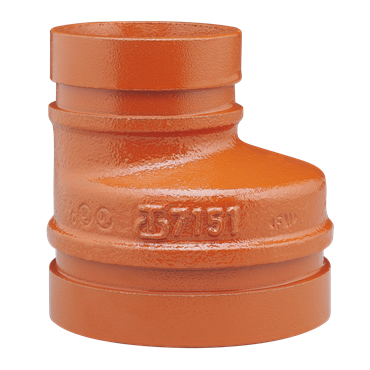

VSH Shurjoint eccentric reducer (2 x groove)

group: 7151

Shurjoint grooved-end reducers are made of ductile iron per ASTM A536 Gr. 65-45-12. dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.
read more
read less

applications

heating

heating

cooling

cooling

compressed air

compressed air

sprinkler

sprinkler

dry fire main

dry fire main

segments

fire protection

fire protection

commercial building

commercial building

industry

industry

approvals

FM

FM

UL

UL

ULc

ULc

item number

size

d1

DN1

l1

z1

d2

DN2

l2

item number

171512920001

size

76.1x60.3 orange

d1

76.1

DN1

DN65

l1

45

z1

45

d2

60.3

DN2

DN50

l2

45

item number

171512920003

size

76.1x60.3 galvanized

d1

76.1

DN1

DN65

l1

45

z1

45

d2

60.3

DN2

DN50

l2

45

item number

171513020001

size

88.9x60.3 orange

d1

89.0

DN1

DN80

l1

45

z1

45

d2

60.3

DN2

DN50

l2

45

item number

171513020003

size

88.9x60.3 galvanized

d1

89.0

DN1

DN80

l1

45

z1

45

d2

60.3

DN2

DN50

l2

45

item number

171513029001

size

88.9x76.1 orange

d1

89.0

DN1

DN80

l1

45

z1

45

d2

76.1

DN2

DN65

l2

45

item number

171513029003

size

88.9x76.1 galvanized

d1

89.0

DN1

DN80

l1

45

z1

45

d2

76.1

DN2

DN65

l2

45

item number

171514520001

size

114.3x60.3 orange

d1

114.3

DN1

DN100

l1

51

z1

51

d2

60.3

DN2

DN50

l2

51

item number

171514520003

size

114.3x60.3 galvanized

d1

114.3

DN1

DN100

l1

51

z1

51

d2

60.3

DN2

DN50

l2

51

item number

171514529001

size

114.3x76.1 orange

d1

114.3

DN1

DN100

l1

51

z1

51

d2

76.1

DN2

DN65

l2

51

item number

171514529003

size

114.3x76.1 galvanized

d1

114.3

DN1

DN100

l1

51

z1

51

d2

76.1

DN2

DN65

l2

51

item number

171514530001

size

114.3x88.9 orange

d1

114.3

DN1

DN100

l1

51

z1

51

d2

88.9

DN2

DN80

l2

51

item number

171514530003

size

114.3x88.9 galvanized

d1

114.3

DN1

DN100

l1

51

z1

51

d2

88.9

DN2

DN80

l2

51

item number

171515230003

size

139.7x88.9 galvanized

d1

139.7

DN1

DN125

l1

51

z1

51

d2

88.9

DN2

DN80

l2

51

item number

171515245001

size

139.7x114.3 orange

d1

139.7

DN1

DN125

l1

51

z1

51

d2

114.3

DN2

DN100

l2

51

item number

171515245003

size

139.7x114.3 galvanized

d1

139.7

DN1

DN125

l1

51

z1

51

d2

114.3

DN2

DN100

l2

51

item number

171516220001

size

165.1x60.3 orange

d1

165.1

DN1

DN150

l1

51

z1

51

d2

60.3

DN2

DN50

l2

51

item number

171516220003

size

165.1x60.3 galvanized

d1

165.1

DN1

DN150

l1

51

z1

51

d2

60.3

DN2

DN50

l2

51

item number

171516230001

size

165.1x88.9 orange

d1

165.1

DN1

DN150

l1

51

z1

51

d2

88.9

DN2

DN80

l2

51

item number

171516230003

size

165.1x88.9 galvanized

d1

165.1

DN1

DN150

l1

51

z1

51

d2

88.9

DN2

DN80

l2

51

item number

171516245001

size

165.1x114.3 orange

d1

165.1

DN1

DN150

l1

51

z1

51

d2

114.3

DN2

DN100

l2

51

item number

171516245003

size

165.1x114.3 galvanized

d1

165.1

DN1

DN150

l1

51

z1

51

d2

114.3

DN2

DN100

l2

51

item number

171516252001

size

165.1x139.7 orange

d1

165.1

DN1

DN150

l1

51

z1

51

d2

139.7

DN2

DN125

l2

51

item number

171516252003

size

165.1x139.7 galvanized

d1

165.1

DN1

DN150

l1

51

z1

51

d2

139.7

DN2

DN125

l2

51

item number

171518545001

size

219.1x114.3 orange

d1

219.1

DN1

DN200

l1

64

z1

64

d2

114.3

DN2

DN100

l2

64

item number

171518545003

size

219.1x114.3 galvanized

d1

219.1

DN1

DN200

l1

64

z1

64

d2

114.3

DN2

DN100

l2

64

item number

171518562001

size

219.1x165.1 orange

d1

219.1

DN1

DN200

l1

64

z1

64

d2

165.1

DN2

DN150

l2

64

item number

171518562003

size

219.1x165.1 galvanized

d1

219.1

DN1

DN200

l1

64

z1

64

d2

165.1

DN2

DN150

l2

64

item number

17151A145003

size

273x114.3 galvanized

d1

273.0

DN1

DN250

l1

76

z1

76

d2

114.3

DN2

DN100

l2

76

item number

17151A162001

size

273x165.1 orange

d1

273.0

DN1

DN250

l1

76

z1

76

d2

165.1

DN2

DN150

l2

76

item number

17151A162003

size

273x165.1 galvanized

d1

273.0

DN1

DN250

l1

76

z1

76

d2

165.1

DN2

DN150

l2

76

item number

17151A185001

size

273x219.1 orange

d1

273.0

DN1

DN250

l1

89

z1

76

d2

219.1

DN2

DN200

l2

89

item number

17151A185003

size

273x219.1 galvanized

d1

273.0

DN1

DN250

l1

89

z1

76

d2

219.1

DN2

DN200

l2

89

item number

17151A385001

size

323.9x219.1 orange

d1

323.9

DN1

DN300

l1

89

z1

89

d2

219.1

DN2

DN200

l2

89

item number

17151A385003

size

324x219.1 galvanized

d1

323.9

DN1

DN300

l1

89

z1

89

d2

219.1

DN2

DN200

l2

89

item number

17151A3A1001

size

324x273 orange

d1

323.9

DN1

DN300

l1

89

z1

89

d2

273.0

DN2

DN250

l2

89

item number

17151A3A1003

size

323.9x273 galvanized

d1

323.9

DN1

DN300

l1

89

z1

89

d2

273.0

DN2

DN250

l2

89

technical drawing for product

characteristics

color

silver, orange

materials

cast iron (ASTM A536 65-45-12)

finishing

galvanised, varnished

manufacturer

Shurjoint

shape

Excentric, reducer

connection type

groove (fitting)

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

73071910

brand

VSH

series

Shurjoint

product type

7151

UNSPS

40173603

label

value

label

Material connection 1

value

Cast iron

label

Material connection 2

value

Cast iron

label

Shape

value

Straight

label

Model

value

1-part

label

Reducing

value

Yes

label

Eccentric

value

Yes

label

System specific

value

No

label

Connection 1

value

Groove

label

Connection 2

value

Groove

label

With buffer stud

value

No

label

High tensile strength

value

Yes

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

LPCB quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
