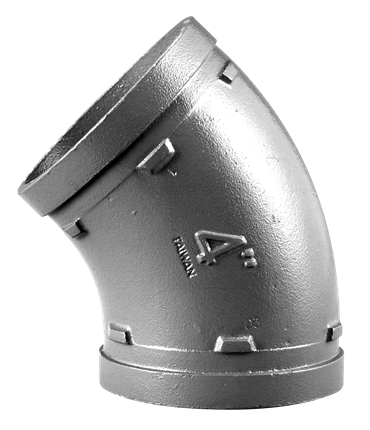

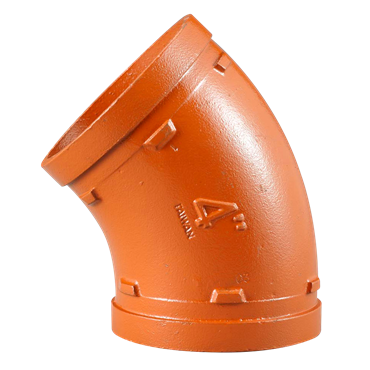

VSH Shurjoint 45° elbow (2 x groove)

group: 7111

Shurjoint grooved-end elbows are made of ductile iron per ASTM A536 Gr. 65-45-12. C-E dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.
read more
read less

applications

heating

heating

cooling

cooling

compressed air

compressed air

sprinkler

sprinkler

dry fire main

dry fire main

segments

fire protection

fire protection

commercial building

commercial building

industry

industry

approvals

CRN

CRN

FM

FM

LPCB

LPCB

TSU

TSU

UL

UL

ULc

ULc

VdS

VdS

item number

size

d1

DN1

l1

z1

es1

d2

DN2

l2

z2

es2

radius

angle

item number

171110010001

size

33.4 (DN25) orange

d1

33.4

DN1

DN25

l1

45

z1

45

es1

23

d2

33.4

DN2

DN25

l2

45

z2

45

es2

23

radius

35

angle

45

item number

171110010003

size

33.4 (DN25) galvanized

d1

33.4

DN1

DN25

l1

45

z1

45

es1

23

d2

33.4

DN2

DN25

l2

45

z2

45

es2

23

radius

35

angle

45

item number

171110012001

size

42.4 (DN32) orange

d1

42.2

DN1

DN32

l1

45

z1

45

es1

23

d2

42.2

DN2

DN32

l2

45

z2

45

es2

23

radius

50

angle

45

item number

171110012003

size

42.4 (DN32) galvanized

d1

42.2

DN1

DN32

l1

45

z1

45

es1

23

d2

42.2

DN2

DN32

l2

45

z2

45

es2

23

radius

50

angle

45

item number

171110015001

size

48.3 (DN40) orange

d1

48.3

DN1

DN40

l1

45

z1

45

es1

23

d2

48.3

DN2

DN40

l2

45

z2

45

es2

23

radius

50

angle

45

item number

171110015003

size

48.3 (DN40) galvanized

d1

48.3

DN1

DN40

l1

45

z1

45

es1

23

d2

48.3

DN2

DN40

l2

45

z2

45

es2

23

radius

50

angle

45

item number

171110020001

size

60.3 (DN50) orange

d1

60.3

DN1

DN50

l1

51

z1

51

es1

25

d2

60.3

DN2

DN50

l2

51

z2

51

es2

25

radius

62

angle

45

item number

171110020003

size

60.3 (DN50) galvanized

d1

60.3

DN1

DN50

l1

51

z1

51

es1

25

d2

60.3

DN2

DN50

l2

51

z2

51

es2

25

radius

62

angle

45

item number

171110029001

size

76.1 (DN65) orange

d1

76.1

DN1

DN65

l1

57

z1

57

es1

25

d2

76.1

DN2

DN65

l2

57

z2

57

es2

25

radius

75

angle

45

item number

171110029003

size

76.1 (DN65) galvanized

d1

76.1

DN1

DN65

l1

57

z1

57

es1

25

d2

76.1

DN2

DN65

l2

57

z2

57

es2

25

radius

75

angle

45

item number

171110030001

size

88.9 (DN80) orange

d1

88.9

DN1

DN80

l1

64

z1

64

es1

25

d2

88.9

DN2

DN80

l2

64

z2

64

es2

25

radius

90

angle

45

item number

171110030003

size

88.9 (DN80) galvanized

d1

88.9

DN1

DN80

l1

64

z1

64

es1

25

d2

88.9

DN2

DN80

l2

64

z2

64

es2

25

radius

90

angle

45

item number

171110045001

size

114.3 (DN100) orange

d1

114.3

DN1

DN100

l1

76

z1

76

es1

25

d2

114.3

DN2

DN100

l2

76

z2

76

es2

25

radius

123

angle

45

item number

171110045003

size

114.3 (DN100) galvanized

d1

114.3

DN1

DN100

l1

76

z1

76

es1

25

d2

114.3

DN2

DN100

l2

76

z2

76

es2

25

radius

123

angle

45

item number

171110052001

size

139.7 (DN125) orange

d1

139.7

DN1

DN125

l1

83

z1

83

es1

25

d2

139.7

DN2

DN125

l2

83

z2

83

es2

25

radius

135

angle

45

item number

171110052003

size

139.7 (DN125) galvanized

d1

139.7

DN1

DN125

l1

83

z1

83

es1

25

d2

139.7

DN2

DN125

l2

83

z2

83

es2

25

radius

135

angle

45

item number

171110062001

size

165.1 (DN150) orange

d1

165.1

DN1

DN150

l1

89

z1

89

es1

25

d2

165.1

DN2

DN150

l2

89

z2

89

es2

25

radius

153

angle

45

item number

171110062003

size

165.1 (DN150) galvanized

d1

165.1

DN1

DN150

l1

89

z1

89

es1

25

d2

165.1

DN2

DN150

l2

89

z2

89

es2

25

radius

153

angle

45

item number

171110085001

size

219.1 (DN200) orange

d1

219.1

DN1

DN200

l1

108

z1

108

es1

31

d2

219.1

DN2

DN200

l2

108

z2

108

es2

31

radius

190

angle

45

item number

171110085003

size

219.1 (DN200) galvanized

d1

219.1

DN1

DN200

l1

108

z1

108

es1

31

d2

219.1

DN2

DN200

l2

108

z2

108

es2

31

radius

190

angle

45

item number

1711100A1001

size

273 (DN250) orange

d1

273.0

DN1

DN250

l1

121

z1

121

es1

31

d2

273.0

DN2

DN250

l2

121

z2

121

es2

31

radius

214

angle

45

item number

1711100A1003

size

273 (DN250) galvanized

d1

273.0

DN1

DN250

l1

121

z1

121

es1

31

d2

273.0

DN2

DN250

l2

121

z2

121

es2

31

radius

214

angle

45

item number

1711100A3001

size

323.9 (DN300) orange

d1

323.9

DN1

DN300

l1

133

z1

133

es1

31

d2

323.9

DN2

DN300

l2

133

z2

133

es2

31

radius

243

angle

45

item number

1711100A3003

size

323.9 (DN300) galvanized

d1

323.9

DN1

DN300

l1

133

z1

133

es1

31

d2

323.9

DN2

DN300

l2

133

z2

133

es2

31

radius

243

angle

45

item number

1711100A4001

size

355.6 (DN350) orange

d1

355.6

DN1

DN350

l1

152

z1

152

es1

d2

355.6

DN2

DN350

l2

152

z2

152

es2

radius

236

angle

45

item number

1711100A6001

size

406.4 (DN400) orange

d1

406.4

DN1

DN400

l1

184

z1

184

es1

d2

406.4

DN2

DN400

l2

184

z2

184

es2

radius

261

angle

45

technical drawing for product

characteristics

color

silver, orange

materials

cast iron (ASTM A536 65-45-12)

finishing

galvanised, varnished

manufacturer

Shurjoint

shape

Elbow (45º)

connection type

groove (fitting)

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

brand

VSH

series

Shurjoint

product type

7111

UNSPS

40172803

label

value

label

Material connection 1

value

Cast iron

label

Material connection 2

value

Cast iron

label

Shape

value

Bend

label

Bend angle

value

45°

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Groove

label

Connection 2

value

Groove

label

With buffer stud

value

No

label

High tensile strength

value

Yes

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

Yes

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
