group: 503E_VSH

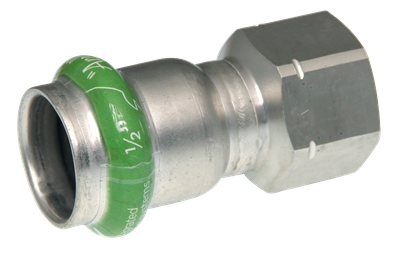

VSH SmartPress is an innovative press connection system designed for joining 1/2"-2" IPS ASTM A312 schedule 5/10s stainless steel pipe (approved for use with both AISI type 304/304L and 316/316L stainless). The VSH SmartPress product range consists of V-profile (type ASP) press fittings and valves produced from AISI 316L stainless steel alloy that are fitted with patented sealing elements for a guaranteed safe, leak-tight and lasting connection. The VSH SmartPress system offers end-users a complete solution with maximum coverage of commercial and industrial applications requiring HNBR, EPDM, or FPM sealing elements.
potable water
heating
cooling
steam
compressed air
sprinkler
vacuum
fire protection
commercial building
industry
FM
IAPMO/ANSI/CAN Z1117
NSF/ANSI/CAN 372
NSF/ANSI/CAN 61
UL
ULc
item number
size
weight
dimensions
packaging
gtin
item number
size
1/2”xFPT1/2"
weight
0.11 kg
dimensions
58x33x33
packaging
bag (10 pce)
gtin
08711985527773
item number
size
3/4”xFPT1/2"
weight
0.12 kg
dimensions
58x38x38
packaging
bag (10 pce)
gtin
08711985527780
item number
size
3/4”xFPT3/4"
weight
0.13 kg
dimensions
59x38x38
packaging
bag (5 pce)
gtin
08711985527797
item number
size
1”xFPT1/2"
weight
0.22 kg
dimensions
60x48x48
packaging
bag (5 pce)
gtin
08711985527803
item number
size
1”xFPT3/4"
weight
0.19 kg
dimensions
60x48x48
packaging
bag (5 pce)
gtin
08711985527810
item number
size
1”xFPT1"
weight
0.24 kg
dimensions
66x48x48
packaging
bag (5 pce)
gtin
08711985527827
item number
size
1 1/2”xFPT1"
weight
0.41 kg
dimensions
69x65x65
packaging
bag (1 pce)
gtin
08711985527834
item number
size
1 1/2”xFPT1 1/4"
weight
0.33 kg
dimensions
69x65x65
packaging
bag (1 pce)
gtin
08711985527841
item number
size
1 1/2”xFPT1 1/2"
weight
0.45 kg
dimensions
72x65x65
packaging
bag (1 pce)
gtin
08711985527858
item number
size
2”xFPT1 1/4"
weight
0.69 kg
dimensions
79x80x80
packaging
bag (1 pce)
gtin
08711985527865
item number
size
2”xFPT1 1/2"
weight
0.62 kg
dimensions
79x80x80
packaging
bag (1 pce)
gtin
08711985527872
item number
size
2”xFPT2"
weight
0.62 kg
dimensions
84x80x80
packaging
bag (1 pce)
gtin
08711985527889

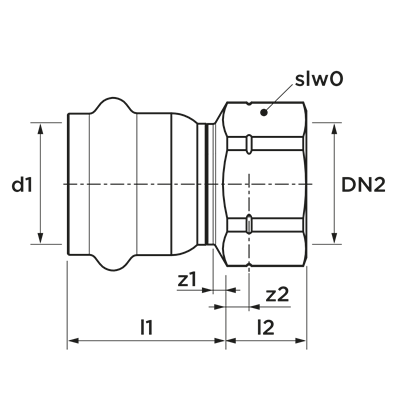

item number
size
d1
DN1
l1
z1
d2
DN2
l2
z2
slw2
item number
123459976
size
1/2”xFPT1/2"
d1
21.3
DN1
DN15
l1
36
z1
9
d2
21.3
DN2
1/2" (DN15)
l2
24
z2
16
slw2
28
item number
123459977
size
3/4”xFPT1/2"
d1
26.9
DN1
DN20
l1
34
z1
7
d2
21.3
DN2
1/2" (DN15)
l2
24
z2
16
slw2
28
item number
123459978
size
3/4”xFPT3/4"
d1
26.9
DN1
DN20
l1
34
z1
7
d2
26.9
DN2
3/4" (DN20)
l2
25
z2
16
slw2
32
item number
123459979
size
1”xFPT1/2"
d1
33.7
DN1
DN25
l1
38
z1
8
d2
21.3
DN2
1/2" (DN15)
l2
22
z2
14
slw2
36
item number
123459980
size
1”xFPT3/4"
d1
33.7
DN1
DN25
l1
38
z1
8
d2
26.9
DN2
3/4" (DN20)
l2
22
z2
14
slw2
36
item number
123459981
size
1”xFPT1"
d1
33.7
DN1
DN25
l1
38
z1
8
d2
33.7
DN2
1" (DN25)
l2
28
z2
18
slw2
41
item number
123459982
size
1 1/2”xFPT1"
d1
48.3
DN1
DN40
l1
43
z1
8
d2
33.7
DN2
1" (DN25)
l2
26
z2
16
slw2
50
item number
123459983
size
1 1/2”xFPT1 1/4"
d1
48.3
DN1
DN40
l1
43
z1
8
d2
42.2
DN2
1 1/4" (DN32)
l2
26
z2
15
slw2
50
item number
123459984
size
1 1/2”xFPT1 1/2"
d1
48.3
DN1
DN40
l1
43
z1
8
d2
48.3
DN2
1 1/2" (DN40)
l2
29
z2
19
slw2
60
item number
123459985
size
2”xFPT1 1/4"
d1
60.3
DN1
DN50
l1
52
z1
11
d2
42.2
DN2
1 1/4" (DN32)
l2
30
z2
19
slw2
65
item number
123459986
size
2”xFPT1 1/2"
d1
60.3
DN1
DN50
l1
52
z1
11
d2
48.3
DN2
1 1/2" (DN40)
l2
30
z2
19
slw2
65
item number
123459987
size
2”xFPT2"
d1
60.3
DN1
DN50
l1
52
z1
11
d2
60.3
DN2
2" (DN50)
l2
35
z2
24
slw2
70
color
silver
materials
stainless steel (Stainless steel 316L (1.4404))
finishing
none
manufacturer
Aalberts integrated piping systems B.V. (VSH)
shape
straight, reducer
connection type
press (V), FPT - female thread conical (NPT)
sealing
EPDM
product group
fittings
ETIM class
EC003024 Fitting with 2 connections
HS code
73072980
brand
VSH
series
SmartPress
product type
503E
UNSPS
40172507
label
value
label
ETIM class
label
Material connection 1
value
Stainless steel
label
Material quality connection 1
value
Stainless steel 316 L (1.4404)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Stainless steel
label
Material quality connection 2
value
Stainless steel 316 L (1.4404)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
1-part
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Press sleeve
label
Contour code connection 1
value
V
label
Connection 2
value
Internal thread conical (NPT)
label
Main colour fitting
value
Grey
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
Medium temperature (continuous)
value
-35°C - 135°C
label
Medium temperature (continuous) (imperial)
value
-31°F - 275°F
label
Max. operating pressure at 20 °C
value
34.47bar
label
Max. operating pressure at 20 °C (imperial)
value
500psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
Yes
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
Yes
label
LPCB quality mark
value
No
label
ULC quality mark
value
Yes
label
UL quality mark
value
Yes
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
