Return bend

group: 138

WROT-COPPER Alloy fittings from Elkhart Products Corporation are for use in plumbing and other mechanical applications. All 1/8” – 8” fittings are manufactured in the United States at one of our three locations; Elkhart Indiana, Geneva Indiana and Fayetteville Arkansas. WROTCOPPER fittings are designed to join ASTM B88 and ASTM B280 seamless copper tube.
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

d1

DN1

es1

d2

DN2

es2

item number

132364

size

7/8x2 1/2

d1

22.2

DN1

DN20

es1

19

d2

22.2

DN2

DN20

es2

19

technical drawing for product

characteristics

color

copper

materials

copper (CW024A (UNS C12200))

finishing

none

shape

Bend

connection type

solder

general

product group

fittings

ETIM class

EC003024 Fitting with 2 connections

HS code

74121000

brand

EPC

series

AC-R

product type

138

technical

max operating pressure liquid

39.99 bar

min. medium temperature

-28.9 °C

max medium temperature

204.4 °C

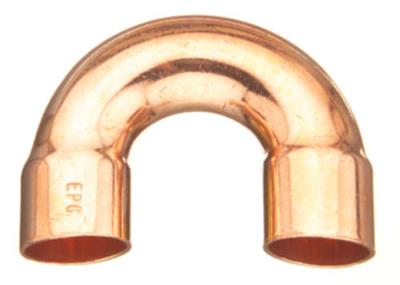

image for 138

image | jpg

138

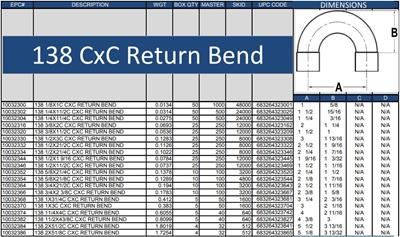

image for Diagram

diagram | jpg

Diagram

label

value

label

Material connection 1

value

Copper

label

Material quality connection 1

value

Cu-DHP (CW024A)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Copper

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Nominal diameter connection 1

value

DN 20

label

Outer pipe diameter connection 1

value

22.23mm

label

Outer pipe diameter connection 1 (imperial)

value

0.88"

label

Connection 1

value

Soldered sleeve

label

Nominal diameter connection 2

value

DN 20

label

Outer pipe diameter connection 2

value

22.23mm

label

Outer pipe diameter connection 2 (imperial)

value

0.88"

label

Connection 2

value

Soldered sleeve

label

Main colour fitting

value

Copper

label

Length

value

61.98mm

label

Medium temperature (continuous)

value

-28.9°C - 204.4°C

label

Medium temperature (continuous) (imperial)

value

-20.02°F - 399.92°F

label

Max. operating pressure at 20 °C

value

39.99bar

label

Max. operating pressure at 20 °C (imperial)

value

580.4psi

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
