Yorkshire Elbow

group: 12GHD

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

natural gas

natural gas

heating

heating

cooling

cooling

vacuum

vacuum

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

angle

item number

56289

size

8

angle

90

item number

56291

size

12

angle

90

item number

56292

size

15

angle

90

item number

56294

size

22

angle

90

item number

56295

size

28

angle

90

item number

56296

size

35

angle

90

item number

56297

size

42

angle

90

item number

56298

size

54

angle

90

technical drawing for product

characteristics

materials

bronze (EN CC499K)

finishing

none

shape

Elbow (90º)

connection type

solder

sealing

Metal sealing

general

product group

fittings

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

Pegler

series

Yorkshire GHD

product type

12GHD

UNSPS

40172800

technical

max operating pressure liquid

value depends on the item view items

min. medium temperature

-196 °C

max medium temperature

200 °C

peak medium temperature

175 °C

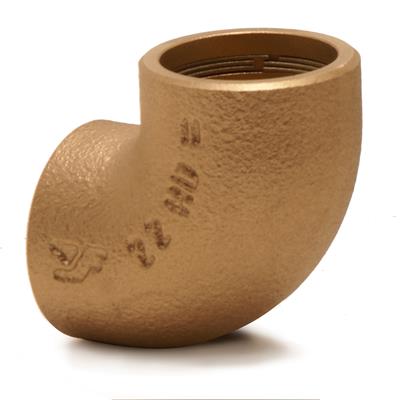

image for 12GHD

image | jpg

12GHD

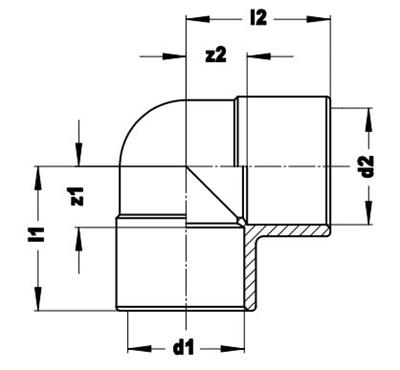

image for Diagram

diagram | jpg

Diagram

label

value

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Bend

label

Model

value

1-part

label

Bend angle

value

90°

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Soldered sleeve

label

Connection 2

value

Soldered sleeve

label

Material sealing

value

Metal-sealing

label

With buffer stud

value

No

label

Medium temperature (continuous)

value

-196°C - 175°C

label

Medium temperature (continuous) (imperial)

value

-320.8°F - 347°F

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

56289

carbon footprint (A-C) embodied carbon

0.1kgCO2e

data source

TM65

item number

56291

carbon footprint (A-C) embodied carbon

0.17kgCO2e

data source

TM65

item number

56292

carbon footprint (A-C) embodied carbon

0.29kgCO2e

data source

TM65

item number

56294

carbon footprint (A-C) embodied carbon

0.58kgCO2e

data source

TM65

item number

56295

carbon footprint (A-C) embodied carbon

1.08kgCO2e

data source

TM65

item number

56296

carbon footprint (A-C) embodied carbon

1.93kgCO2e

data source

TM65

item number

56297

carbon footprint (A-C) embodied carbon

3.06kgCO2e

data source

TM65

item number

56298

carbon footprint (A-C) embodied carbon

6.25kgCO2e

data source

TM65
