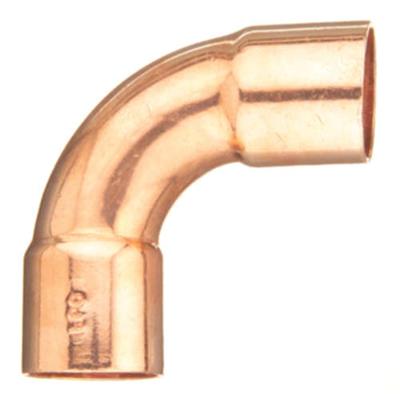

90° Elbow-Long Turn

group: 107-L

WROT-COPPER Alloy fittings from Elkhart Products Corporation are for use in plumbing and other mechanical applications. All 1/8” – 8” fittings are manufactured in the United States at one of our three locations; Elkhart Indiana, Geneva Indiana and Fayetteville Arkansas. WROTCOPPER fittings are designed to join ASTM B88 and ASTM B280 seamless copper tube.
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

d1

DN1

es1

d2

DN2

es2

item number

131708

size

1 1/8"

d1

28.6

DN1

DN25

es1

23

d2

28.6

DN2

DN25

es2

23

item number

131664

size

1/4

d1

6.4

DN1

DN6

es1

3

d2

6.4

DN2

DN6

es2

3

item number

131676

size

5/8

d1

15.9

DN1

DN15

es1

13

d2

15.9

DN2

DN15

es2

13

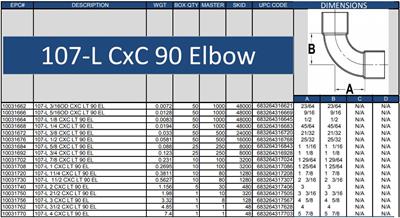

technical drawing for product

characteristics

color

copper

materials

copper (CW024A (UNS C12200))

finishing

none

shape

Elbow

connection type

solder

general

product group

fittings

ETIM class

EC003024 Fitting with 2 connections

HS code

74121000

brand

EPC

series

AC-R

product type

107-L

UNSPS

40172812

technical

max operating pressure liquid

value depends on the item view items

min. medium temperature

-28.9 °C

max medium temperature

204.4 °C

image for 107-L

image | jpg

107-L

image for Diagram

diagram | jpg

Diagram

label

value

label

Material connection 1

value

Copper

label

Material quality connection 1

value

Cu-DHP (CW024A)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Copper

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Soldered sleeve

label

Connection 2

value

Soldered sleeve

label

Main colour fitting

value

Copper

label

Medium temperature (continuous)

value

-28.9°C - 204.4°C

label

Medium temperature (continuous) (imperial)

value

-20.02°F - 399.92°F

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
