90° Street Elbow-Long Turn

group: 107-L-2

WROT-COPPER Alloy fittings from Elkhart Products Corporation are for use in plumbing and other mechanical applications. All 1/8” – 8” fittings are manufactured in the United States at one of our three locations; Elkhart Indiana, Geneva Indiana and Fayetteville Arkansas. WROTCOPPER fittings are designed to join ASTM B88 and ASTM B280 seamless copper tube.
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

d1

DN1

es1

DN2

item number

131838

size

1 3/8

d1

34.9

DN1

DN32

es1

25

DN2

DN32

item number

131844

size

1 5/8"

d1

41.3

DN1

DN40

es1

28

DN2

DN40

item number

131796

size

1/2

d1

12.7

DN1

DN10

es1

10

DN2

DN10

item number

131850

size

2 1/8

d1

54.0

DN1

DN50

es1

34

DN2

DN50

technical drawing for product

characteristics

color

copper

materials

copper (CW024A (UNS C12200))

finishing

none

shape

Elbow

connection type

solder, tube end

general

product group

fittings

ETIM class

EC003024 Fitting with 2 connections

HS code

74121000

brand

EPC

series

AC-R

product type

107-L-2

UNSPS

40172812

technical

max operating pressure liquid

value depends on the item view items

min. medium temperature

-28.9 °C

max medium temperature

204.4 °C

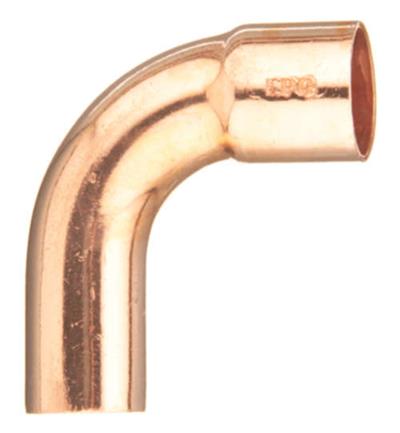

image for 107-L-2

image | jpg

107-L-2

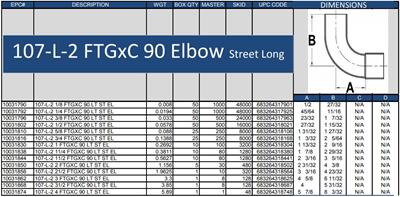

image for Diagram
